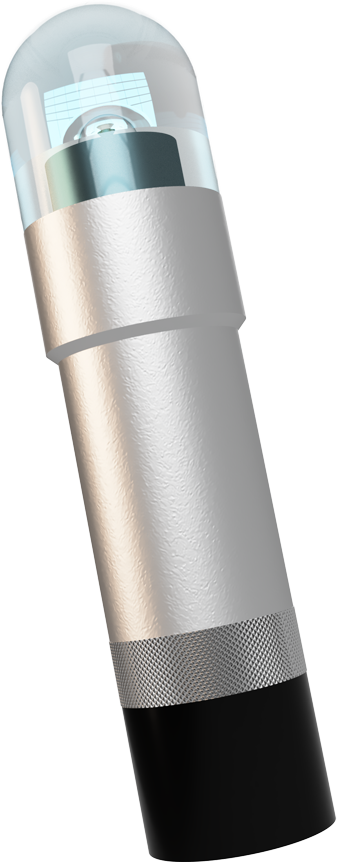

The DWF-200-SW is a small, lightweight and robust subsea LED recovery light for AUV, ROV and subsea applications, for use down to 8000 meters depth.
This light is equipped with unique water pressure switch that turns off the power to the battery when the light submerges to 15 meters depth. When returning to the surface, the pressure switch activates the light automatically.
- Material: Anodized aluminium
- Lens: PMMA
- Light color: White
- Light character: 20 flash/min
- Battery: 1,5 V C-cell alkaline or lithium
- Operational time:
1 pcs. C-cell battery: 170 hours
3 pcs. C-cell battery: 510 hours
- Photocell: Automatic day/night switch
- Visibility: 2-3 NM
- Battery current off: 1,5 bar (15 meters depth)
- Max depth: 8000 meters (800 bar)
- Working temeperature: --40 °C to +60 °C
DWF-200-SW: 197 mm
DWF-300-SW: 333 mm
- Min. diameter: 44 mm
- Max. diameter: 49 mm
Weight ex. battery:
DWF-200-SW: 0.56 Kg
DWF-300-SW: 0.90 Kg
